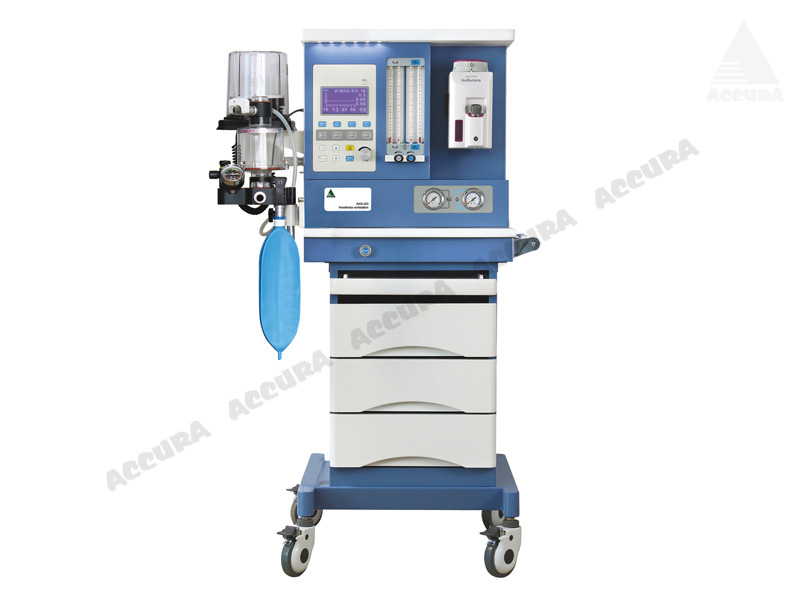

ANESTHESIA WORKSTATION
AWS-403

• British Standard (O2, N2O)
• 5.5” TFT LCD screen
• Built-in Anesthesia Ventilator, Electronic Tidal volume setting
• Compact CO2 absorber (autoclavable)
• Provision for One vaporizer
• High precise vaporizer (Isoflurane I Sevoflurane / Enflurance / Halothane)
• Yoke system for 5L cylinders
• Selectable mounting vaporizer system

Anaesthesia main unit:
• High resolution 5.5” TFT LCD screen
• Close, semi-close, semi-open system
• Application : Adult, Pediatric
• Low gas alarming : Alarming will be for more than 7 seconds.
• High pressure limitation : whenever airway pressure exceeds the pre-set high pressure, ventilator offers protection automatically, for the safety of the patient.
• Low pressure protection : Once O2 pressure less than 0.1MPa, N2O gas supply stops automatically.
• Power failure alarm - automatically machine runs on USP
• O2 flush : 35~75LImin
• Gas Pressure : O2 : 0.27~0.55MPa, N20 : 0.27~0.55MPa,
• Power : 220V±1 0%, 5OHz±1 %; Backup USP Battery.
• Yoke system for O2 & N2O - 5 Ltr. Cylinders

Flow meter:
• O2, N2O — four tubes (0~~10L/min)
• O2/N2O inter-lock system, to keep O2 concentration not less than 25%

Anaesthesia Ventilator (Air/O2 inter-link system):
• Adult bellow - 1 set each
• Compressed air driven, in case of absense of compressed air the machine automatically switches over to Oxygen driven mode.
• Monitor Parameters : Tidal volume, Respiratory frequency, l:E rate, Peak airway pressure, airway pressure waves etc.
• Working mode : Manual, Auto (lPPV, SIGHS, SlMV/F/2, SIPPV, Optional ETCO2)
• Tidal volume : 0 ~ 1500 mL
• Respiratory frequency : 4 ~ 6obpm
• I: E : 1:0.5 ~ 1:4 adjustable
• Synchronizer trigger Pressure : -1 ~ 0 KPa
• High pressure limitation : 2 ~ 6 KPa
• Low pressure limitation : 0.6 ~ 2 KPa

Respiratory Circuit:
• Consolidated compact CO2 absorber (autoclavable)

Vaporizer:
• High precise vaporizer (Enflurane/Halothane/lsoflurane/Sevoflurane)
• Adjustable range : 0.5”~5%VOL
• Automatic compensation function — flow, pressure, temperature
• Self-lock & inter-lock function
• Volume : 280 ml

Features:
• Provision to keep Each : O2 & N2O 5ltr Cylinder

Safety Features:
• Gases interlocking system with hypoxy guard
• Oxygen exhaust alarm
• Blow-off valve
